Sand casting foundry uses the green sand or dry sand for making the casting patterns. The following photos show the sand casting equipment such as sand process equipment, sand mixer, molding machine, sand core machine, automatic molding machine, shot blasting machine, cleaning and grinding machines and other post-process equipment.
Sand Casting Equipment at RMC's Sand Casting Foundry |
|||
| Sand Casting Equipment | Inspection Equipment | ||
| Description | Quantity | Description | Quantity |
| Vertical Automatic Sand Molding Production Line | 1 | Hareness Tester | 1 |
| Horizontal Automatic Sand Molding Production Line | 1 | Spectrometer | 1 |
| Medium-Frequency Induction Furnace | 2 | Metallurgical Microscope Tester | 1 |
| Automatic Sand Molding Machine | 10 | Tensile Strength Testing Machine | 1 |
| Baking Furnace | 2 | Yield Strength Tester | 1 |
| Hanger Type Shot Blasting Machine | 3 | Carbon-Sulfur Analyzer | 1 |
| Sand Blasting Booth | 1 | CMM | 1 |
| Drum Type Shot Blasting Machine | 5 | Vernier Caliper | 20 |
| Abrasive Belt Machine | 5 | Precision Machining Machine | |
| Cutting Machine | 2 | ||
| Air Plasma Cutting Machine | 1 | ||
| Pickling Equipment | 2 | Vertical Machining Center | 6 |
| Pressure Shaping Machine | 4 | Horizontal Machining Center | 4 |
| DC Welding Machine | 2 | CNC Lathing Machine | 20 |
| Argon Arc Welding Machine | 3 | CNC Milling Machine | 10 |
| Electro-Polish Equipment | 1 | Honing Machine | 2 |
| Polishing Machine | 8 | Vertical Drilling Machine | 4 |
| Vibrate Grinding Machine | 3 | Milling and Drilling Machine | 4 |
| Heat Treatment Furnace | 3 | Tapping and Drilling Machine | 10 |
| Automatic Cleaning Line | 1 | Grinding Machine | 2 |
| Automatic Painting Line | 1 | Ultrasonic Cleaning Machine | 1 |
| Sand Processing Equipment | 2 | ||
| Dust Collector | 3 | ||

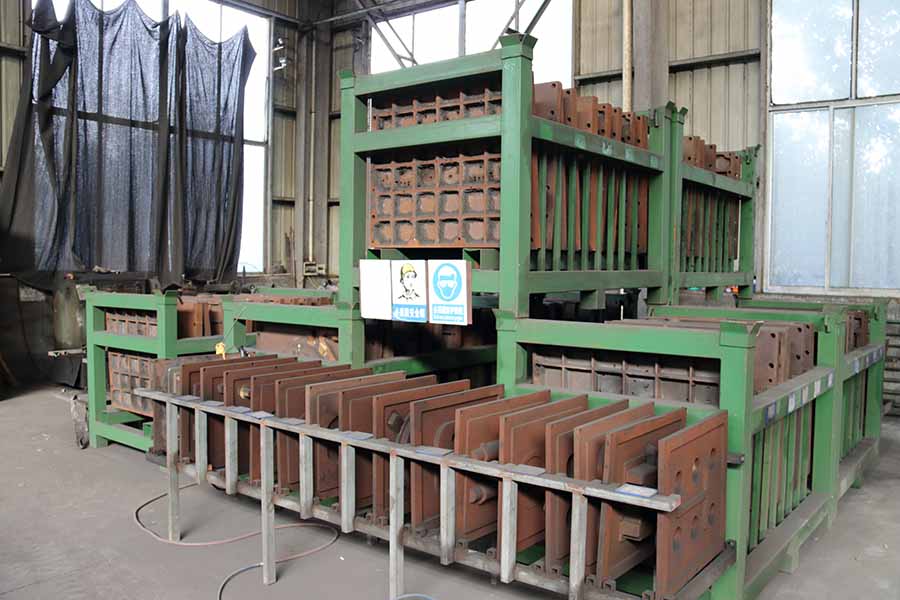

Mold Warehouse
Mold Warehouse
Mold Warehouse
Sand Cores Making

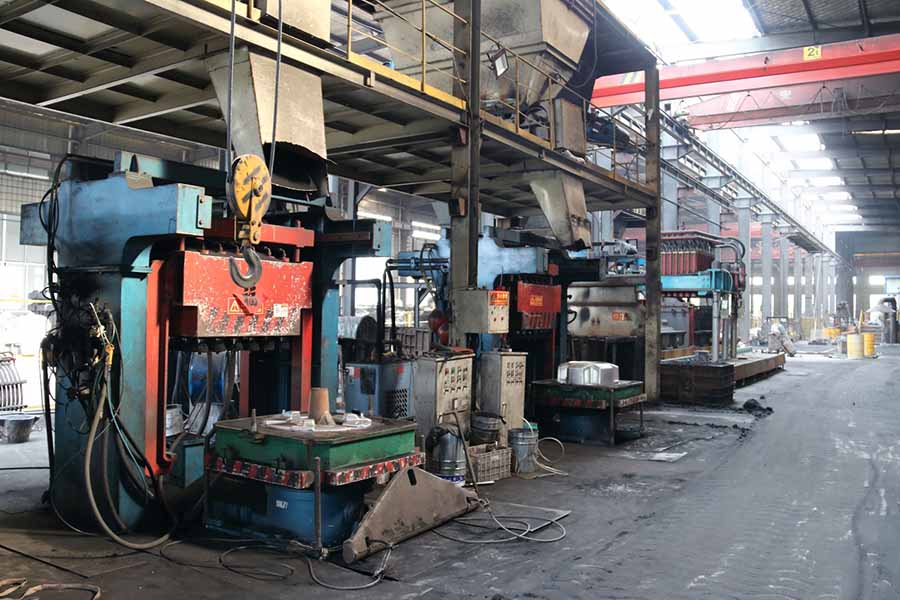

Automatic Sand Molding Line
Automatic Sand Molding Line
Automatic Sand Molding Line
Automatic Sand Molding Line

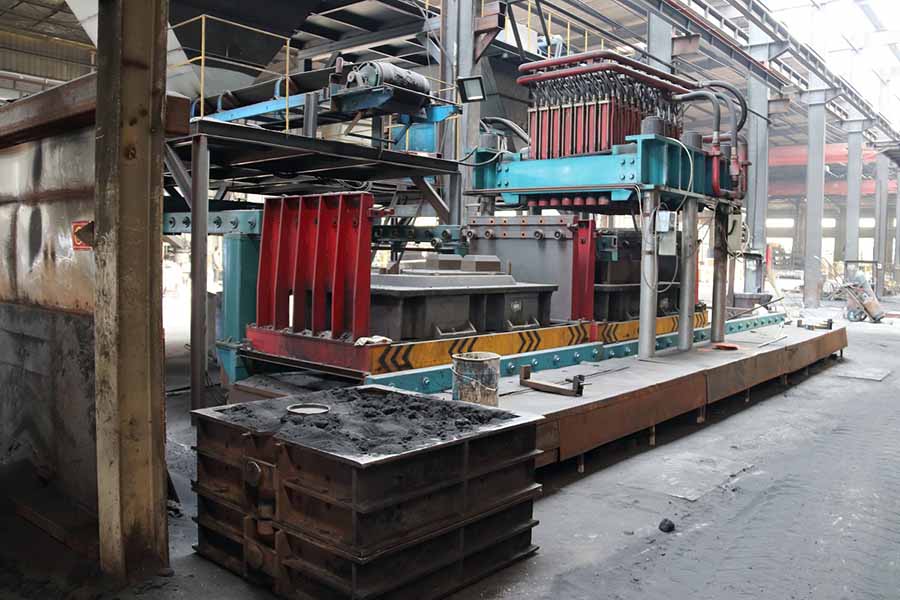

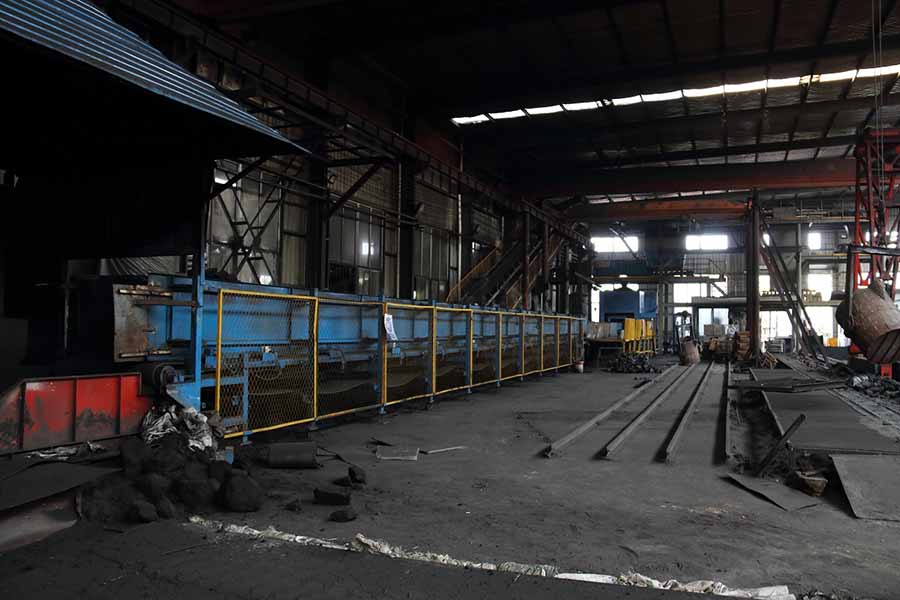

Sand Casting Foundry
Sand Casting Foundry
Sand Casting Foundry

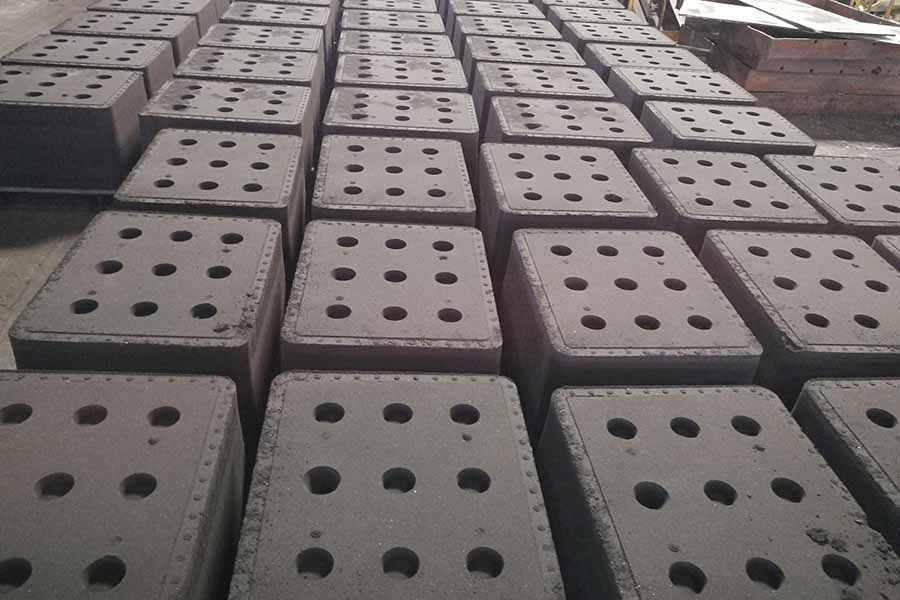

Sand Molding for Pouring

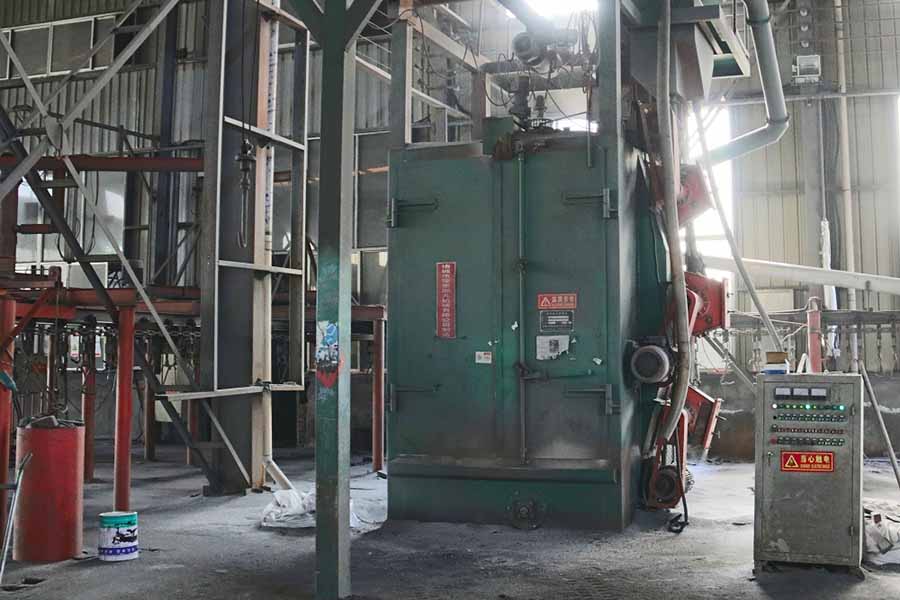

Shot Blasting Machine

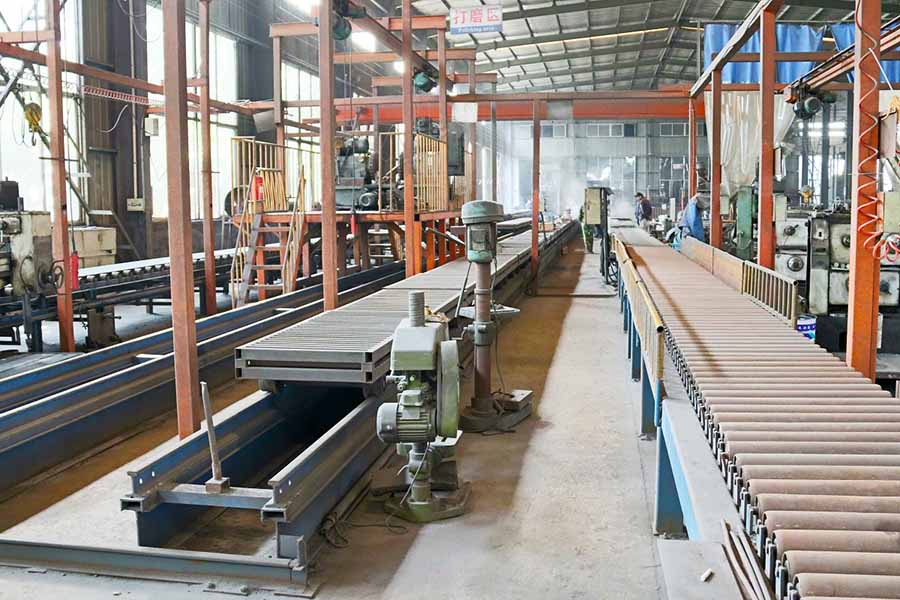

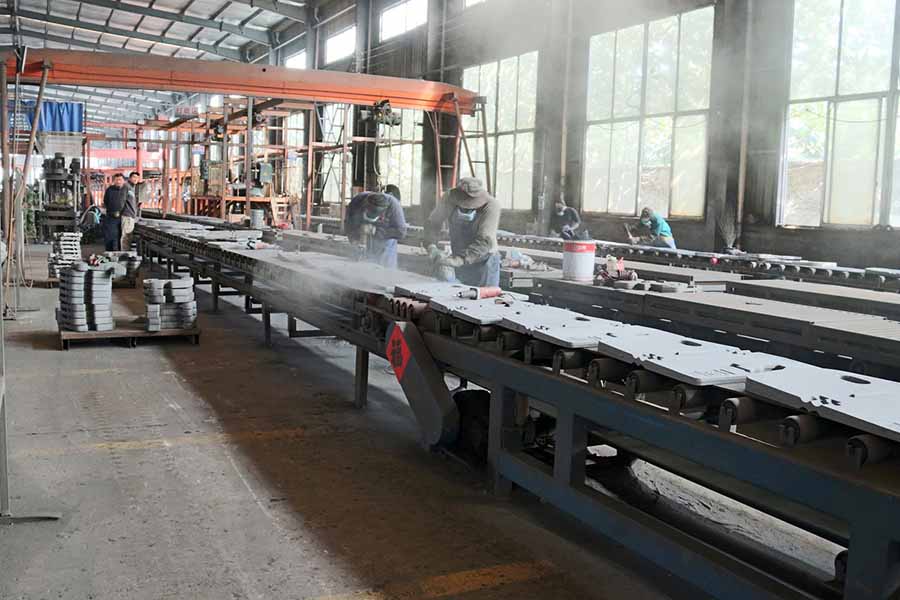

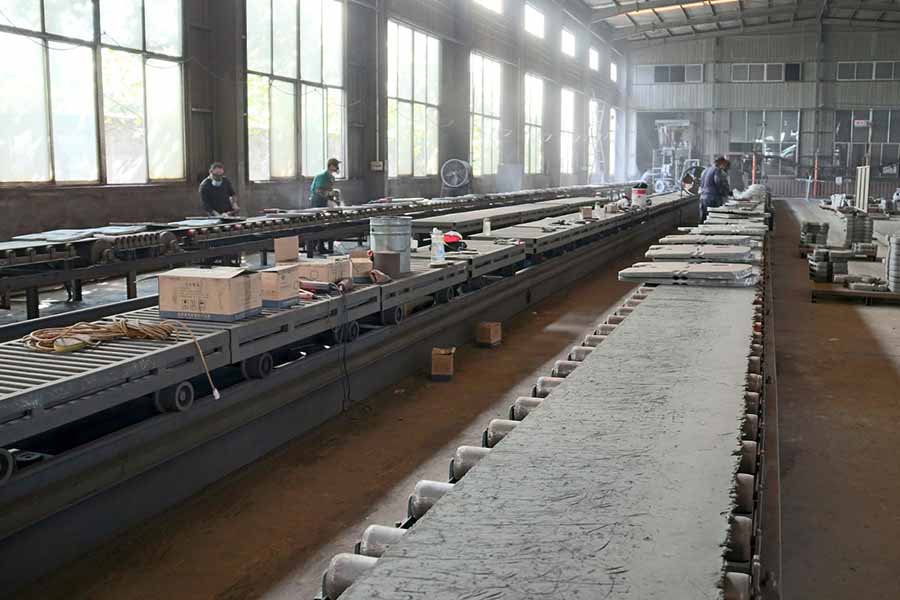

Automatic Cleaning and Polishing line
Automatic Cleaning and Polishing line
Automatic Cleaning and Polishing line

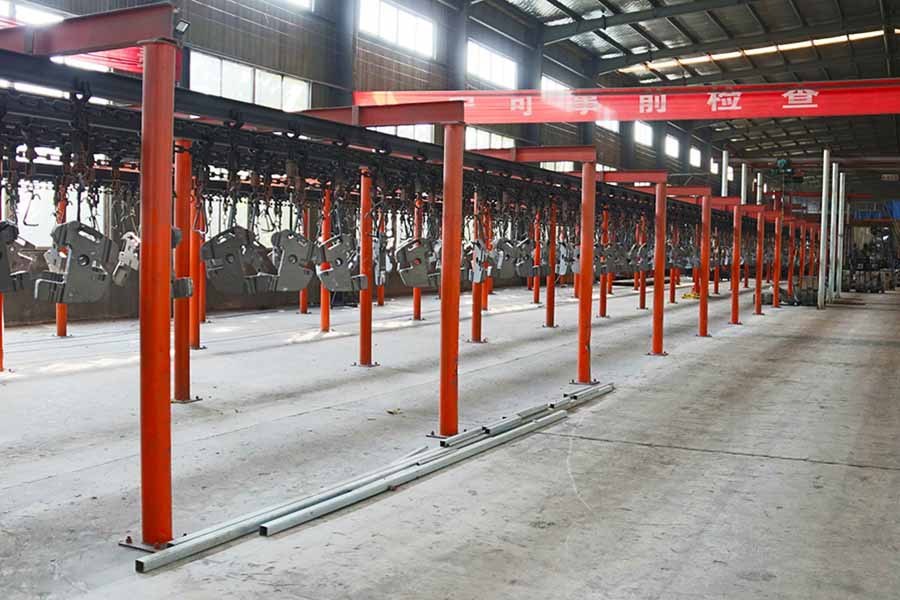

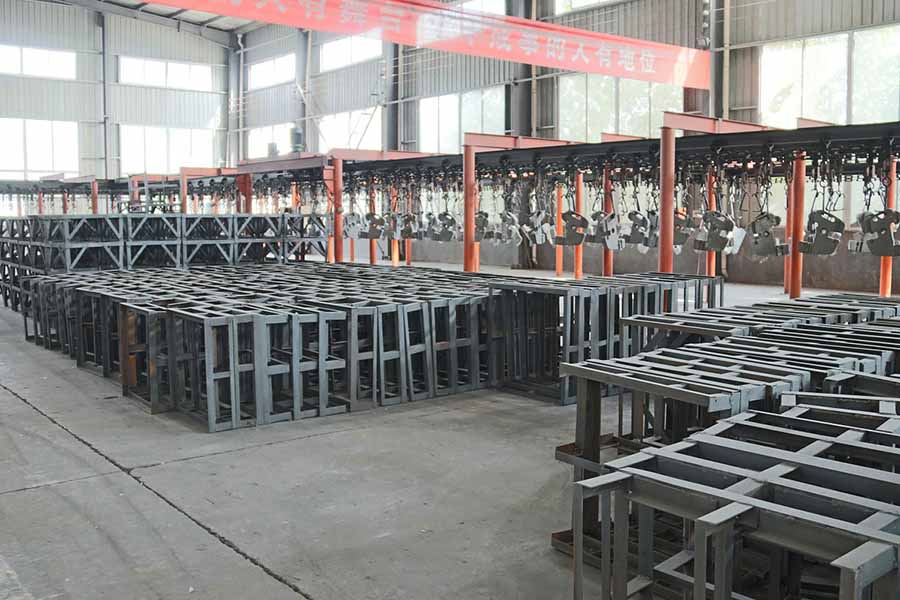

Grinding and Painting Line
Grinding and Painting Line
Inspection Area
Inspection Area
|
Sand Casting Capabilities at RMC Sand Casting Foundry
|
||||||
| Casting Process | Annual Capacity / Tons | Main Materials | Casting Weights | Dimensional Tolerance Grade of Castings (ISO 8062) | Heat Treatment | |
| Green Sand Casting | 6000 | Cast Gray Iron, Cast Ductile Iron, Cast Aluminium, Brass, Cast Steel, Stainless Steel | 0.3 kg to 200 kg | CT11~CT14 | Normalization, Quenching, Tempering, Annealing, Carburization | |
| Shell Mold Casting | 0.66 lbs to 440 lbs | CT8~CT12 | ||||
